HSHP-HH

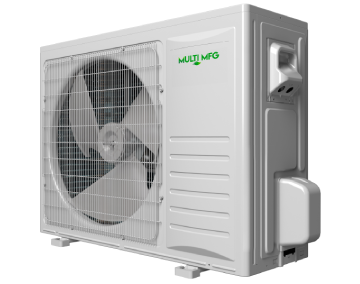

The HSHP-HH is a highly efficient split system, with a horizontal ceiling mount soffit mount fan coil and an outdoor side discharge heat pump unit. The indoor fan coil can be installed in various locations, and is designed for standard bottom return air. This system supplies comfortable cooling and heating performance at low sound levels.
Specification Sheet
Typical installations for the HSHP-HH include:
- Apartments
- Condominiums
- Independent Care Facilities
- Pre-Manufactured Homes
- Single Family Home Additions
- Modular Buildings
- Student Housing
- Offices
- Stores
Features:
Highly Efficient/ High Performance
- Highly Efficient Inverter Compressor, with Efficiencies up to 18.00 SEER2
- Air Handler EC Blower Motor, with Available ESP up to 0.80″ WC
- Low Amp Draw DC motor in Outdoor HP
Quite Operation , Inside and Outside
- Low Sone EC motor in HSHP Fan Coil
- Quiet Inverter Compressor in Outdoor Heat Pump, with low Sound Levels
Heating at Low Ambient Conditions
- Standard Base Pan Heaters
- Hyper Heat, with full heating capacity down to 5° F
Design
- Standard Bottom Return Air or Ducted Return Air Available
- Automatic Restart Function
- 24V Control Board with High, Medium and Low Motor Speed Taps
- Indoor Unit can be wired to 115/1 or 208/230/1
- Suction Line Service Port
- Pre-Coated Fins on Evaporator and Condenser Coils
- Crankcase Heater
- Compressor Time Delay
- Compressor Overload and Over Current Protection
- Environmentally Friendly R454B Refrigerant
- 208/1, 230/1 or 115/1 Power can be applied to the Fan Coil
