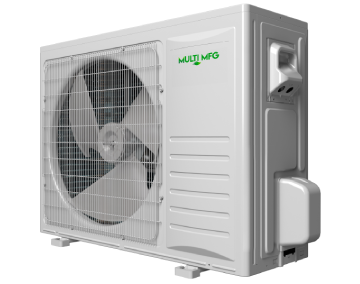

MUC-HE
Communicating Inverter High Efficiency Outdoor HP with Wall Mount Air Handlers with Optional Field Install Electric Strip Heat. Up to 0.80 ESP. Efficiencies up to 18.60 SEER2 and 11.5 EER2.
Specification Sheet
Typical installations for the HSHP-HH include:
- Apartments
- Condominiums
- Independent Care Facilities
- Pre-Manufactured Homes
- Single Family Home Addition
- Modular Buildings
- Student Housing
- Offices
- Stores
Features:
Highly Efficient/ High Performance
- Highly Efficient Inverter Compressor
- Air Handler Constant Torque EC Blower Motor, with Available ESP up to 0.80″ WC
- Low Amp Draw DC motor in Outdoor HP
Quite Operation , Inside and Outside
- Low Sone EC motor in MUC Air Handler
- Quiet Inverter Compressor in Outdoor Heat Pump, with low Sound Levels
Heating at Low Ambient Conditions
- Standard Base Pan Heaters
- Factory Installed Auxiliary Electric Strip Heat Kits
Design
- Standard Front Return Air or Field Convertible to Bottom Return
- Automatic Restart Function
- 24V Control Board with High, Medium and Low Motor Speed Taps
- Indoor Unit can be wired to 115/1 or 208/230/1
- Liquid Line Service Port
- Pre-Coated Fins on Evaporator and Condenser Coils
- Crankcase Heater
- Compressor Time Delay
- Compressor Overload and Over Current Protection
- Environmentally Friendly R454b Refrigerant
