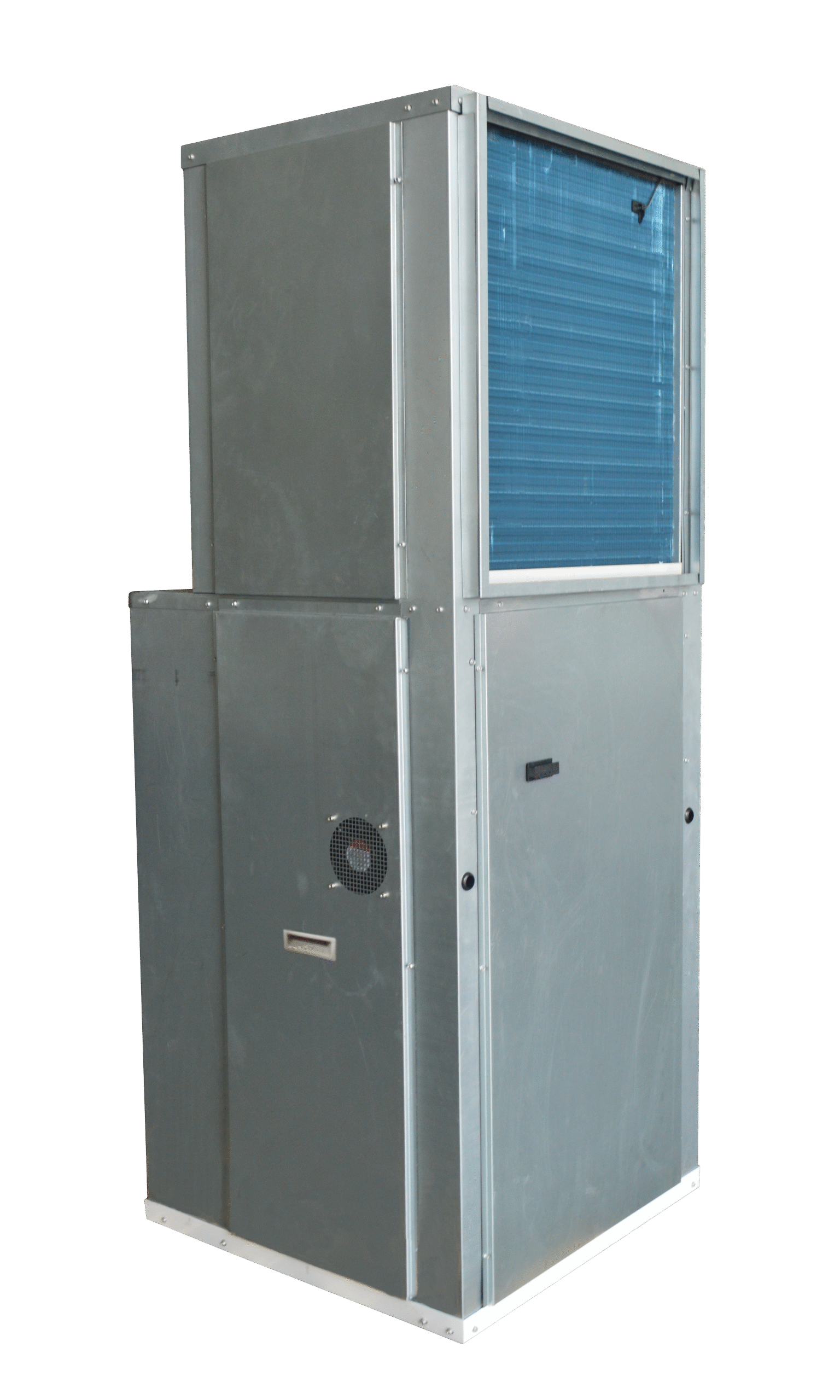

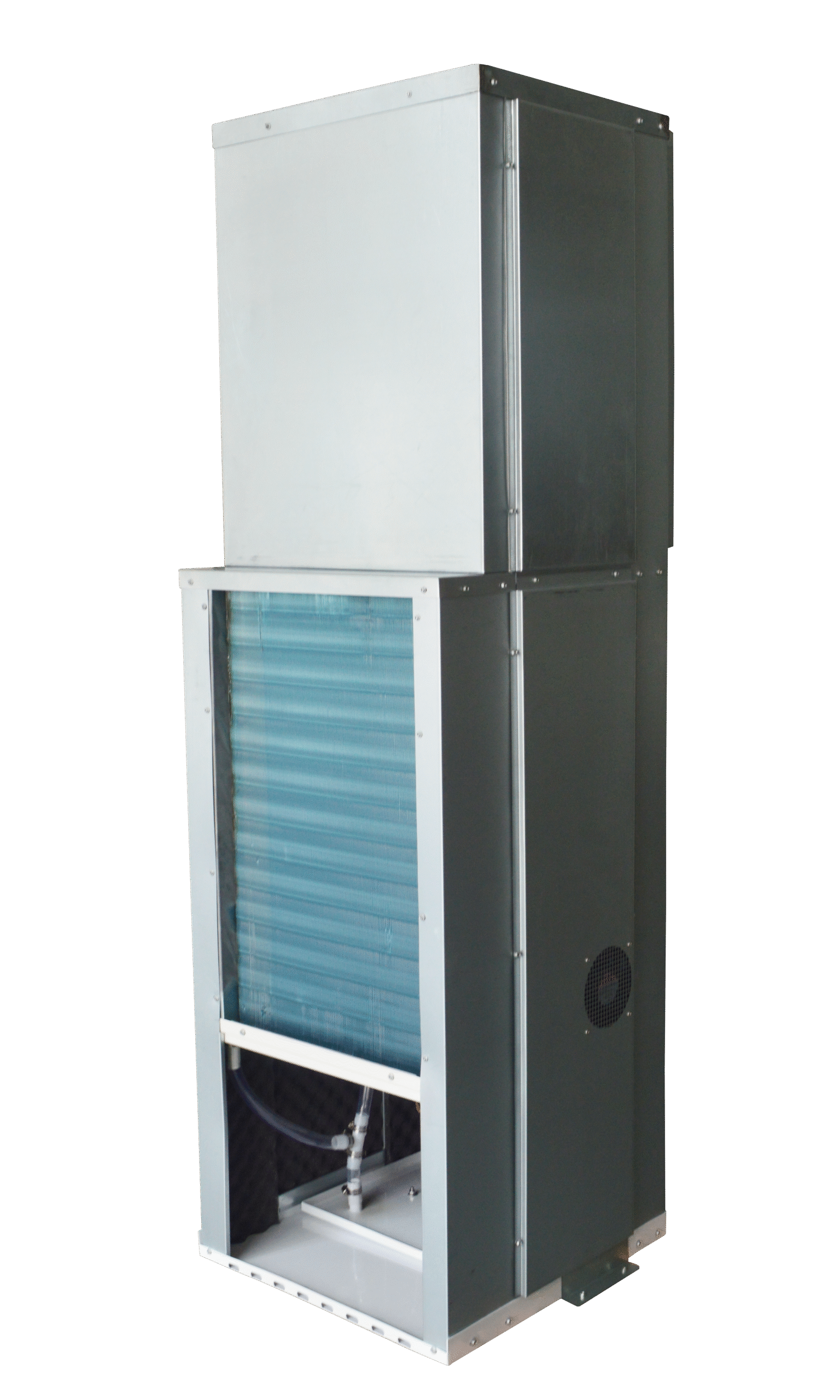

SPV-HP-D (R454B)
The SPV is a highly efficient Single Package Vertical unit that is designed as better alternative for New Construction and Retrofit Projects. With a compact design, the SPV can be installed in smaller areas, freeing up valuable floor space.
Specification Sheet
Typical installations for the SPV include
- High Rise Apartments
- High Rise Condominiums
- Hotels
- Motels
- Independent Care Facilities
- Pre-Manufactured Homes
- Modular Buildings
- Student Housing
Highly Efficient/High Performance
• High Efficient Inverter Compressor, with Efficiencies up to 11.0 EER2
• High Performance EC Blower Motor, with Available ESP up to 0.50″ WC
• DC Condenser Motor, with Low Amp Draw
Variable Capacity Performance
• Variable Capacity Design, allowing engineers to effectively design for heat loss.
Heating at Low Ambient Conditions
• Heat Pump Operation to 15° F• Heat Strip Options Available for Colder Climates
• COP up to 3.7 @ 47° F
Easily Installed and Serviced
• Unit Slides into a Wall Sleeve that is installed on Rough‐In
• Unit can be removed easily for service; by sliding it out of the Wall Sleeve
• Service Compartment is Accessible from the Inside‐Front of the Unit
• Fresh Air
• Fan‐Assisted Fresh Air Package with damper is available.
Standard Innovative Design
• Refrigerant Service Ports
• Low Pressure Safety
• Corrosion Resistant Evaporator and Condenser Coils
• Foil‐Face Insulation Lining in cabinet
• Gasketed Doors and Panels, to Comply with 2% Low Leak Requirements
• Compressor Blanket and Sound Attenuating Insulation in Compressor Compartment
